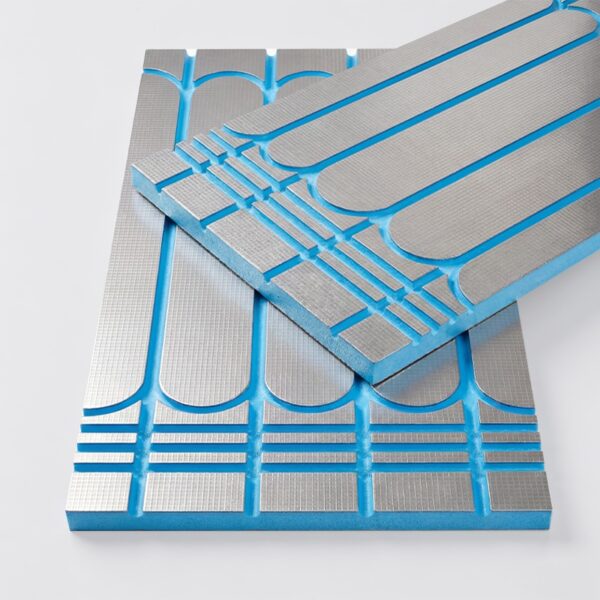

xps tile bakcer underfloor Heating Panel

Overview OukeTherm pre-cut XPS underfloor heating panels combine thermal insulation and accurate pipe routing in one lightweight board. Factory-machined grooves help installers position heating pipes quickly and maintain consistent spacing, reducing on-site cutting and simplifying underfloor heating installation. Designed for residential and commercial projects, the panels are available in multiple thicknesses, pipe diameters and groove layouts to suit different heating plans.

Product Highlights Pre-cut grooves reduce on-site measuring and cutting. XPS insulation helps direct more heat upward into the room. Lightweight boards are easy to carry, position and trim. Consistent groove spacing supports orderly pipe installation. Multiple groove patterns support different room layouts. Panel size, thickness, pipe diameter and spacing can be customized. Standard Specifications Panel Size (mm) Thickness (mm) Pipe Diameter (mm) Pipe Spacing (mm)

1200 x 600 30 12 / 16 / 20 100 / 150 / 200

1200 x 600 35 12 / 16 / 20 100 / 150 / 200

1200 x 600 40 12 / 16 / 20 100 / 150 / 200

Custom thicknesses from 20 to 60 mm may be produced subject to project requirements and technical confirmation. Groove Patterns and Piping Options

Applications

Illustrative cutaway showing heat directed upward through the finished floor
